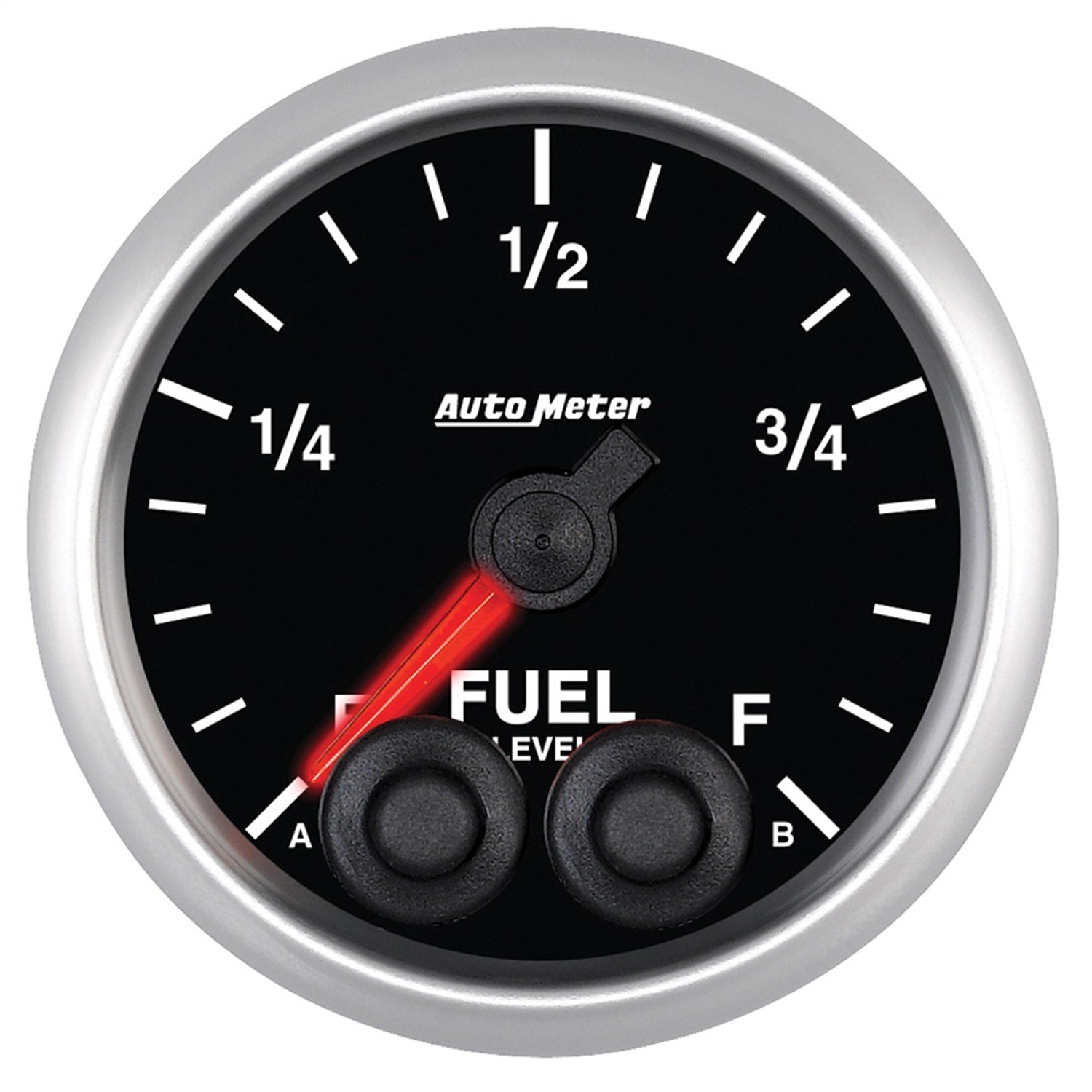

AutoMeter 5609 GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; ELITE AutoMeter 5609

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our 'snapshot' programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

Specifications:

Analog Or Digital	Analog
Bezel Color	Brushed Aluminum
Bezel Style	Super Bezel
Block Adapter Included	No
Bulb and Socket Number	3220
Bulb Technology	LED
Electric Or Mechanical	Electric
Face Color	Black
Fuel Line Adapter Included	No
Gauge Adapter Included	No
Gauge Size	2.0625 in.
Gauge Size	52.4mm
Gauge Type	Fuel Level
Hole Size	0.0625 in.
Hole Size	52.4mm
Illuminated	Yes
Lens	Flat Clear
Light Covers Number	3244/3215
Lighting Color	7 User Selectable Colors
Lighting Type	LED
Liquid Filled	No
Mounting Bracket Number	2230
Movement Type	Electric Digital Stepper Motor
Number Color	White
Outer Bezel Diameter	2.250 in.
Pointer Color	Fluorescent Red
Size	2.3125 in.
Sweep	Full
Voltage	8-18 V
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Wiring Harness Included	No
Description_DES	GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; ELITE
Description_EXT	2-1/16in. FUEL LEVEL; PROGRAMMABLE 0-280 O; ELITE
Description_FAB	7 User-Selectable Lighting Colors
Description_FAB	Custom Programmable Activation And Deactivation Points
Description_FAB	Set Custom High And Low Point Alerts
Description_FAB	User Definable Resistance Between 0-280 Ohms
Description_FAB	Incl. 20 ft. Wiring Harness
Description_FAB	Incl. Mounting Hardware/Installation Instructions
Description_FAB	Digital Stepper Motor Provides Unmatched Accuracy
Description_INV	2-1/16in. FUEL LEVEL; PROG ELITE
Description_MKT	Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our 'snapshot' programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Description_SHO	GA 2in. FU UNIV ELIT
