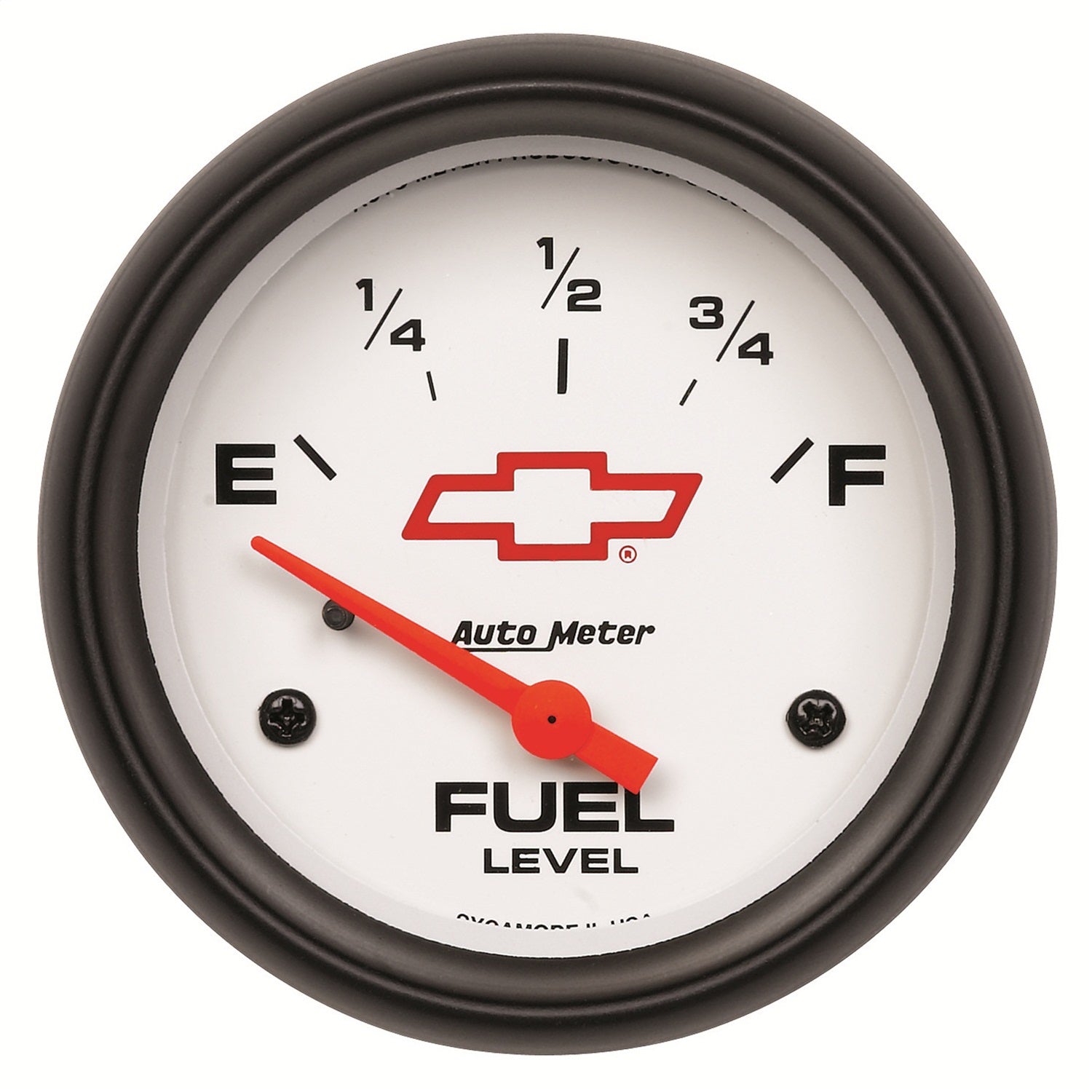

AutoMeter 5814-00406 GAUGE; FUEL LEVEL; 2 5/8in.; 0OE TO 90OF; ELEC; CHEVY RED BOWTIE; WHITE AutoMeter 5814-00406

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Specifications:

Analog Or Digital	Analog
Bezel Color	Black
Bezel Style	Super Bezel
Block Adapter Included	No
Bulb Technology	Incandescent
Electric Or Mechanical	Electric
Face Color	White
Fuel Line Adapter Included	No
Gauge Adapter Included	No
Gauge Size	2.625 in.
Gauge Size	66.7mm
Gauge Type	Fuel Level
Hole Size	2.625 in.
Hole Size	66.7mm
Illuminated	Yes
Lens	Flat Clear
Lighting Color	White Incandescent
Lighting Type	Incandescent
Liquid Filled	No
Mounting Bracket Number	3245
Movement Type	Electric Air-Core
Number Color	Black
Outer Bezel Diameter	2.875 in.
Pointer Color	Fluorescent Red
Size	2.625 in.
Sweep	Short
Voltage	8-18 V
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Description_DES	GAUGE; FUEL LEVEL; 2 5/8in.; 0OE TO 90OF; ELEC; CHEVY RED BOWTIE; WHITE
Description_EXT	2-5/8in. FUEL LEVEL; 0-90 O; ELEC; GM
Description_FAB	Traditional Incandescent Lighting Illuminates
Description_FAB	Works w/Most 1965 To 1997 Chevrolet/GM Senders
Description_FAB	12 And 16 Volt Compatible
Description_FAB	Gauge Kit Incl. Bulb/Socket Assembly Red/Green Bulb Covers
Description_FAB	Includes Mounting Hardware And Instructions For Installation
Description_FAB	AutoMeters Race Proven Air-Core Electric Instruments
Description_INV	2-5/8in. FUEL LEVEL; 0 E/90 F; ELEC; CV
Description_MKT	One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Description_SHO	2-5/8in.FUEL;0-90;E;
