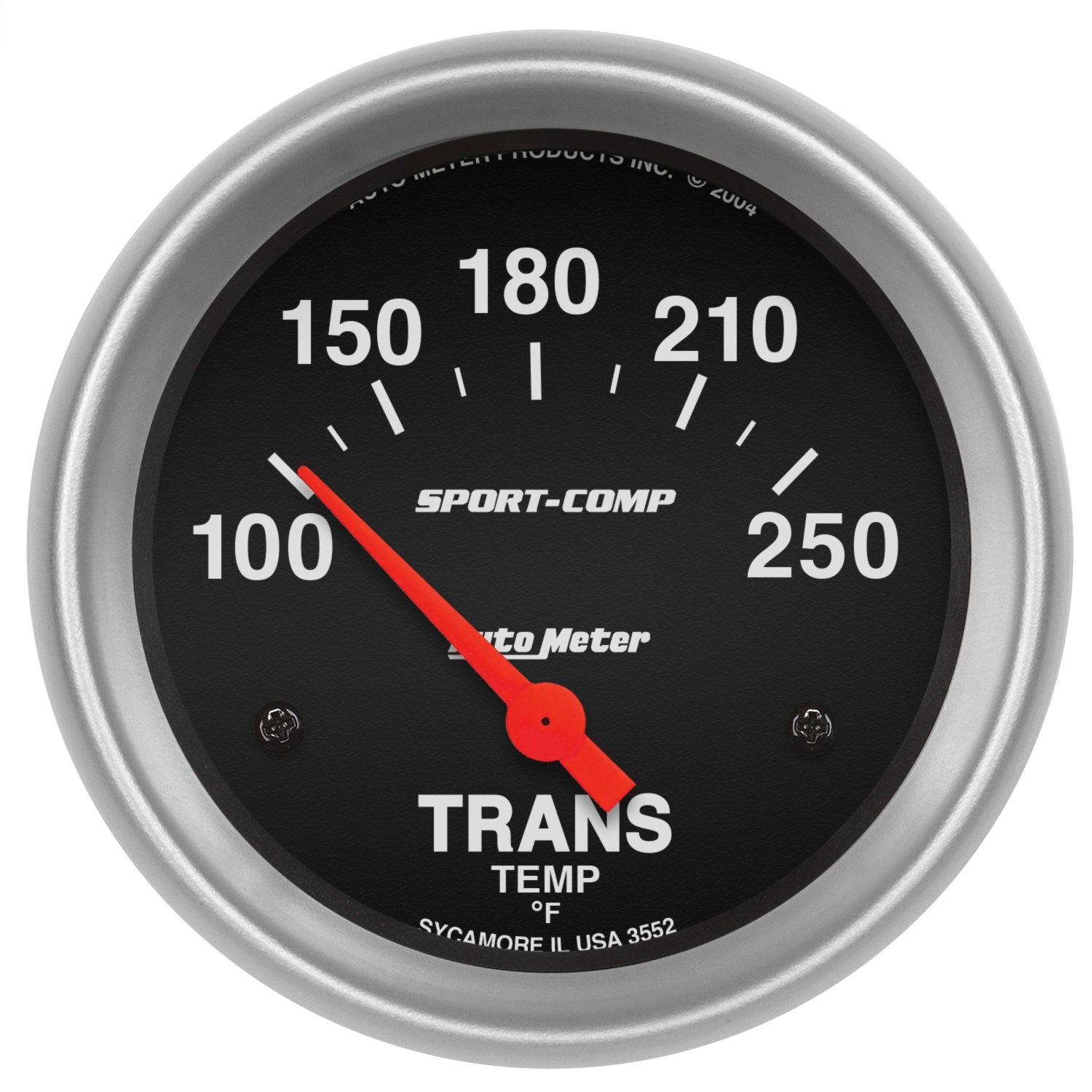

AutoMeter 3552 GAUGE; TRANSMISSION TEMP; 2 5/8in.; 100-250deg.F; ELECTRIC; SPORT-COMP AutoMeter 3552

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Specifications:

Adapters Included	Yes
Analog Or Digital	Analog
Anti-Glare Enclosure Included	No
Bezel Color	Brushed Aluminum
Bezel Style	Super Bezel
Bulb and Socket Number	3220
Bulb Technology	Incandescent
Electric Or Mechanical	Electric; Air-Core
Face Color	Black
Fitting Type	0.375 in. NPT and 0.500 in. NPT
Fittings Included	Yes
Font Color	White
Gauge Size	2.625 in.
Gauge Size	66.7mm
Gauge Type	Transmission Temperature
Hole Size	2.625 in.
Hole Size	66.7mm
Lens	Flat Clear
Light Covers Number	3244/3215
Lighting Color	White Incandescent
Lighting Type	Incandescent
Measurement	US
Mounting Bracket Number	3245
Movement Type	Electric Air-Core
Number Color	White
Outer Bezel Diameter	2.875 in.
Pointer Color	Fluorescent Red
Sending Unit Included	Yes
Size	2.625 in.
Sweep	Short
Temperature	100-250° F
Type	Electrical
Voltage	8-18 V
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Description_DES	GAUGE; TRANSMISSION TEMP; 2 5/8in.; 100-250deg.F; ELECTRIC; SPORT-COMP
Description_EXT	2-5/8in. TRANSMISSION TEMPERATURE; 100-250 deg.F; SPORT-COMP
Description_FAB	Incandescent Lighting Illuminates Around Perimeter Of Dial
Description_FAB	12 And 16V Compatible
Description_FAB	Incl. 1/8 in. NPT Temp Sender
Description_FAB	Incl. 3/8 And 1/2 in. NPT Adapters
Description_FAB	Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
Description_FAB	Incl. Mounting Hardware/Instructions
Description_FAB	Air-Core Electric Instruments Provide Quick And Accurate Readings
Description_INV	2-5/8in. TRANS TEMP; 100-250`F; SSE
Description_MKT	Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Description_SHO	2-5/8in. TRANS TEMP;
