AutoMeter 6014 RACE DASH DISPLAY; 10K RPM/WTRP/FUELP/OILP/OILT/WTMP/VOLT; PRO-COMP AutoMeter 6014

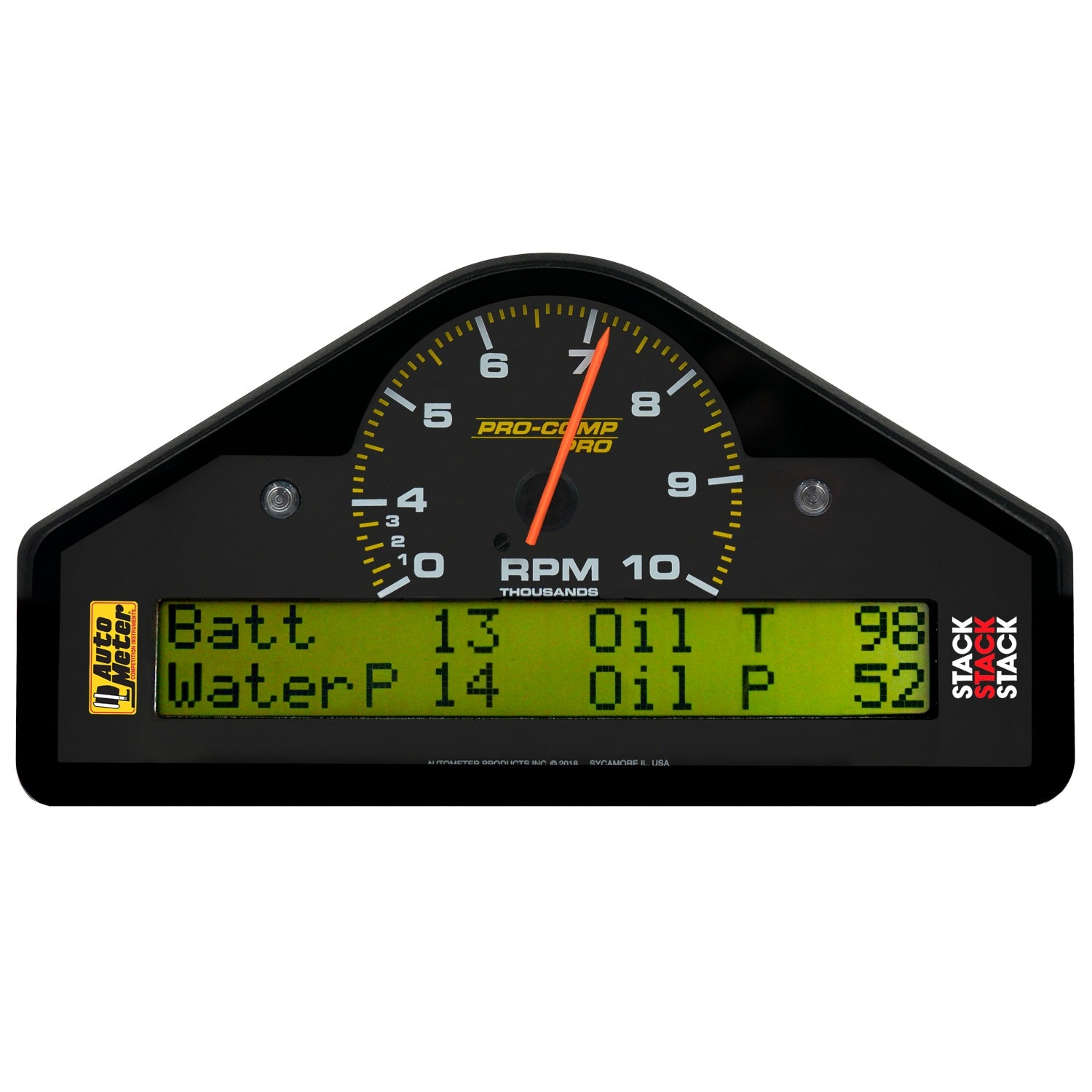

This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session's worth of data with the ability to play back your run right on the face of the dash display when you're back in the pits and preparing for your next heat. Includes qty. 2 1/8 in. NPT temperature sensors, qty. 1 1/8 in. NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8 in. NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation.

Specifications:

Bezel Color	Black
Face Color	Black
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Description_DES	RACE DASH DISPLAY; 10K RPM/WTRP/FUELP/OILP/OILT/WTMP/VOLT; PRO-COMP
Description_EXT	RACE DASH; 0-4-10K RPM; PRO-COMP PRO
Description_FAB	Monitors And Displays - RPM; Speed; Oil Pressure; Oil Temperature; Water Temperature; Voltage; Fuel Pressure
Description_FAB	Dimensions 8.3 in. Wide x 5.2-1/16 in. High x 1.4 in. Deep
Description_FAB	Single 19 Pin MIL Spec Connector And Motorsports Wiring Loom
Description_FAB	Includes Oil Pressure; Water Temperature; Oil Temperature And Fuel Pressure Sensors
Description_FAB	Display Features Digital Values For Vehicle Parameters And Configurable Text Warning Messages
Description_FAB	Built-In Warning And Shift Light Leds
Description_FAB	Optional Shift Light Output; Single Stage Or Progressive Shift Light
Description_FAB	Configurable For Engines From 1-12 Cylinders
Description_FAB	Water And Dust Proof To IP67 Sealing Standard; Offering Protection From Mud And Wash Downs Following An Event
Description_INV	RACE DASH; 0-4-10K RPM WITH WP
Description_MKT	This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session's worth of data with the ability to play back your run right on the face of the dash display when you're back in the pits and preparing for your next heat. Includes qty. 2 1/8 in. NPT temperature sensors, qty. 1 1/8 in. NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8 in. NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation.
Description_SHO	RACE DASH 10K RPM
