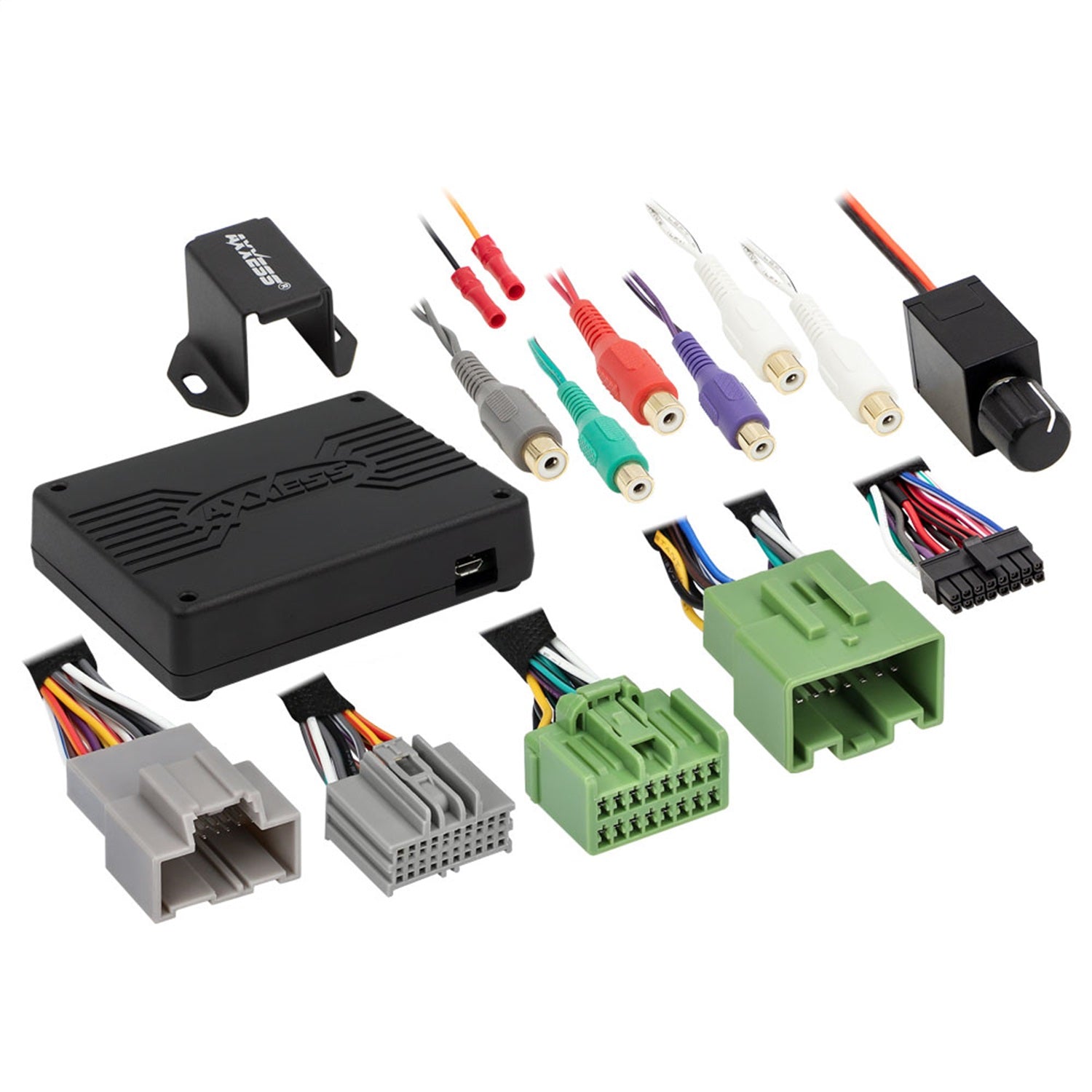

Metra Electronics AXDSPL-GL9 DSP Lite Radio Wiring Harness Interface; For GM 2014-2020; Metra Electronics AXDSPL-GL9

Axxess AXDSPL-GL9 DSP lite radio wire harness interface GM 2014-2020. Upgrade the sound system with this cost-effective, easy-to-install DSP 'Lite' package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in Interface while this may be a 'Lite' version, it still provides retention of many important vehicle functions utilizing Axxess's cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning Control There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

Specifications:

WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals including BPA; beryllium; lead; tetrabromobisphenol A; DEHP Vinyl-Chloride; DEHP; naphthalene; Nickel; cadmium; chromium which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description_DES	DSP Lite Radio Wiring Harness Interface
Description_EXT	DSP Lite Radio Wiring Harness Interface; For GM 2014-2020;
Description_FAB	Package Includes The Axdsp-L And Vehicle-Specific T-Harness
Description_FAB	15-Band Graphic Eq Or 5-Band Parametric Eq
Description_FAB	Selectable High Pass / Low Pass Or Bandpass Filters On Each Channel
Description_FAB	4 Inputs And 6 Individually Assignable Outputs
Description_FAB	Independent Equalization On Each Of The 6 Outputs
Description_FAB	Selectable Slope - 12 / 24 / 36 Or 48Db Per Octave
Description_FAB	Each Channel Can Be Delayed Independently For Up To 10 Ms
Description_FAB	Easy Behind The Radio Installation In Most Applications
Description_MKT	Axxess AXDSPL-GL9 DSP lite radio wire harness interface GM 2014-2020. Upgrade the sound system with this cost-effective, easy-to-install DSP 'Lite' package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in Interface while this may be a 'Lite' version, it still provides retention of many important vehicle functions utilizing Axxess's cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning Control There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
Description_SHO	Radio Wire Harness
