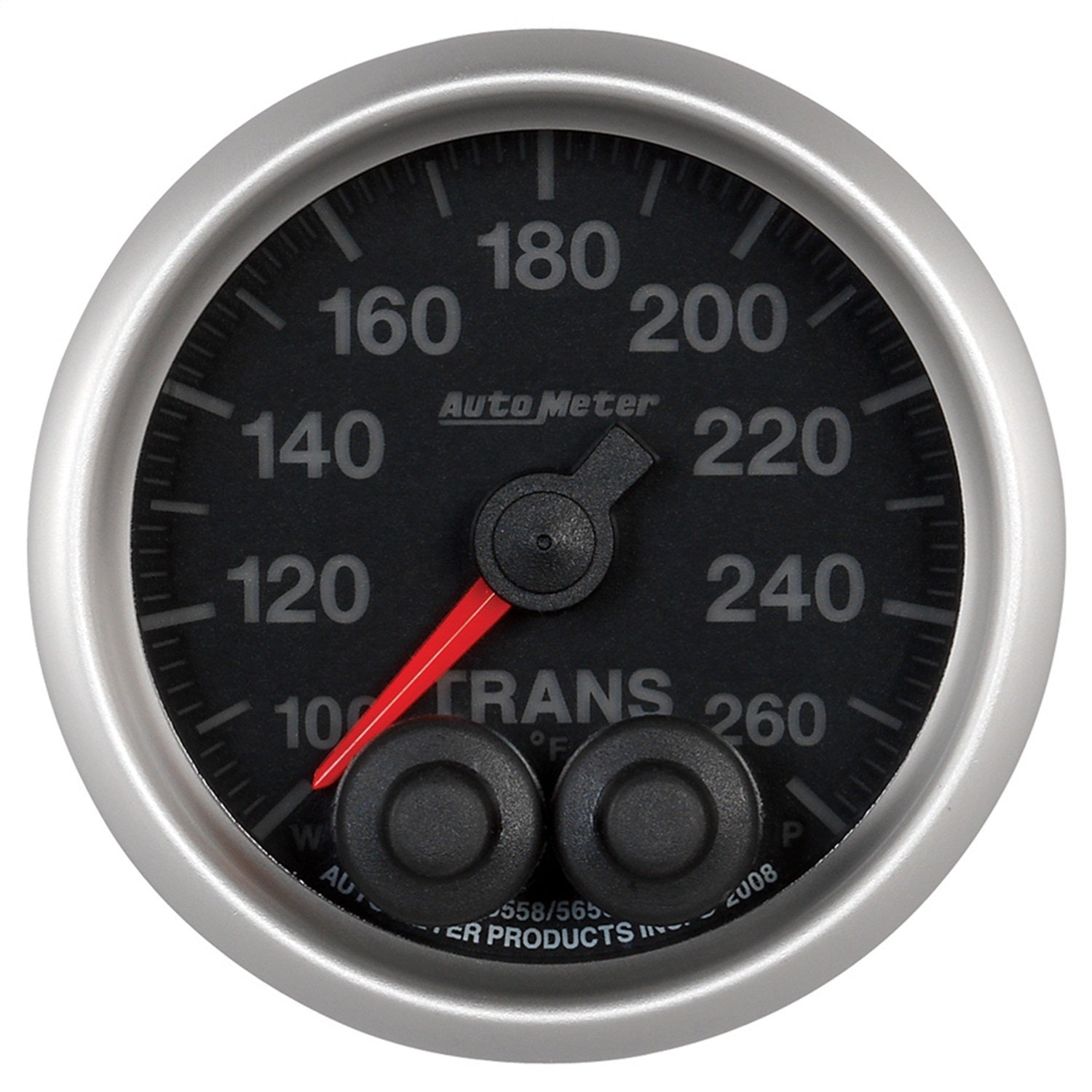

AutoMeter 5658 GAUGE; TRANS TEMP; 2 1/16in.; 260deg.F; STEPPER MOTOR W/PEAK/WARN; ELITE AutoMeter 5658

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

Specifications:

Adapters Included	Yes
Analog Or Digital	Analog
Anti-Glare Enclosure Included	No
Bezel Color	Brushed Aluminum
Bezel Style	Super Bezel
Bulb Technology	LED
Electric Or Mechanical	Electric; Digital Stepper Motor
Face Color	Black
Fitting Type	0.375 in. NPT and 0.500 in. NPT
Fittings Included	Yes
Font Color	White
Gauge Size	2.0625 in.
Gauge Size	52.4mm
Gauge Type	Transmission Temperature
Hole Size	52.4mm
Lens	Flat Clear
Lighting Color	7 User Selectable Colors
Lighting Type	LED
Measurement	US
Mounting Bracket Number	2230
Movement Type	Electric Digital Stepper Motor
Number Color	White
Outer Bezel Diameter	2.250 in.
Pointer Color	Fluorescent Red
Sending Unit Included	Yes
Size	2.3125 in.
Sweep	Full
Temperature	100-260° F
Type	Electrical
Voltage	8-18 V
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Wire Harness Number	5276
Description_DES	GAUGE; TRANS TEMP; 2 1/16in.; 260deg.F; STEPPER MOTOR W/PEAK/WARN; ELITE
Description_EXT	2-1/16in. TRANSMISSION TEMPERATURE; 100-260 deg.F; ELITE
Description_FAB	7 User Selectable Colors To Match Visual Preferences Of Driver And Visibility Conditions
Description_FAB	Custom Programmable Activation and Deactivation Points For Key Functions Like Lights; Fans; Switches
Description_FAB	Pumps Allow Drivers To Focus On The Competition While The Gauges Control Key Vehicle Systems
Description_FAB	Set Custom Alert High And Low Points and Receive Warning Notification To Highlight The Need For Driver Attention
Description_FAB	Acquire Data For Later Review With One-Touch Peak Recall Functionality
Description_FAB	Data Logger 0-5V Output Provides ECU And Data Systems With Vital Information
Description_FAB	Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy
Description_INV	2-1/16in. TRANS TEMP; 100-260`F; ELITE
Description_MKT	Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Description_SHO	GA 2in. TRNST 260F E
