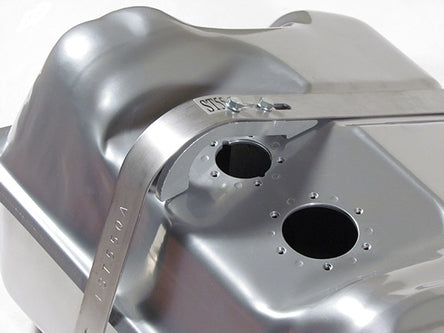

Holley Sniper EFI 19-147 Sniper EFI Fuel Tank System 255 LPH Holley Sniper EFI 19-147

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling and a fuel level sending unit. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! ***You must use your existing stock filler neck or purchase one through restoration suppliers. ***This kit includes a fuel gauge sender for use with factory fuel gauge and wiring. The sending unit uses a three wire connection. If you are using an aftermarket gauge, you will also need a sending unit for that gauge ohm range. A wiring schematic is shown in the product images. Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 38" x 15-3/4" x 11-3/4"

Specifications:

Application	1963-67 Chevrolet Corvette
8920	Yes
8919	Yes
Brand	Holley Sniper EFI
Category	Air and Fuel Delivery
Color	Silver
Drain Plug	No
Emission Code	3
4297	No
Finish	Powdercoated
Free Flow LPH	255
Fuel Sending Unit Ohms	63-67 Corvette Factory
8918	Electronic Fuel Injection
Fuel System Type	Gasoline
8917	Powder Coated
Gallon Capacity	18
3390	Performance
4284	Yes
Material	Steel
Maximum Flow Rating	255 LPH
4295	Yes
New Straps Included	Yes
8137	Yes
part type	Fuel Tank and Pump Assembly Combination
Product Type	Fuel Tank
Resistance Ohms Empty	0 82
Resistance Ohms Full	90 82
4296	Yes
Sub Category	Fuel Pumps and Related Components
Tank Capacity	18 GA
1918	Gray
305	Steel
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNIP FTAPAC
Description_SHO	Sniper EFI Fuel Tank
Description_INV	196367 CORVETTE EFI TANK KIT
Description_ASC	When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.This kit includes a fuel gauge sender for use with FACTORY FUEL GAUGE and wiring. The sending unit using a three wire connection. A wiring schematic is shown in the product images.If you are using an aftermarket gauge, you will also need a sending unit for that gauge ohm range.When testing the ohm range of the sending unit with a stock Corvette gauge you should have the following results:Sender & Power (white & red wires)= 0-120 OHMSSender & Ground (white & black wires)= 120-0 OHMSPower & Ground (red & black)= 120 Constant
Description_DES	Sniper EFI Fuel Tank System 255 LPH
Description_EXT	1963-1967 Corvette, Coated Steel, EFI, Gas
Description_MKT	Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling and a fuel level sending unit. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! ***You must use your existing stock filler neck or purchase one through restoration suppliers. ***This kit includes a fuel gauge sender for use with factory fuel gauge and wiring. The sending unit uses a three wire connection. If you are using an aftermarket gauge, you will also need a sending unit for that gauge ohm range. A wiring schematic is shown in the product images. Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 38" x 15-3/4" x 11-3/4"
Description_FAB	Tanks are coated galvanized steel then powder coated silver for total corrosion protection 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting Fuel level sender included with the correct ohm range for your factory gauges Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation Fits and looks like an OE tank when installed Complete bolt in solution for your EFI conversion Includes new tank straps

This Part Fits:

Year	Make	Model	Submodel	Notes
1963	Chevrolet	Corvette	Base
1964	Chevrolet	Corvette	Base
1965	Chevrolet	Corvette	Base
1965	Chevrolet	Corvette	Base
1966	Chevrolet	Corvette	Base
1966	Chevrolet	Corvette	Base
1967	Chevrolet	Corvette	Base
1967	Chevrolet	Corvette	Base
