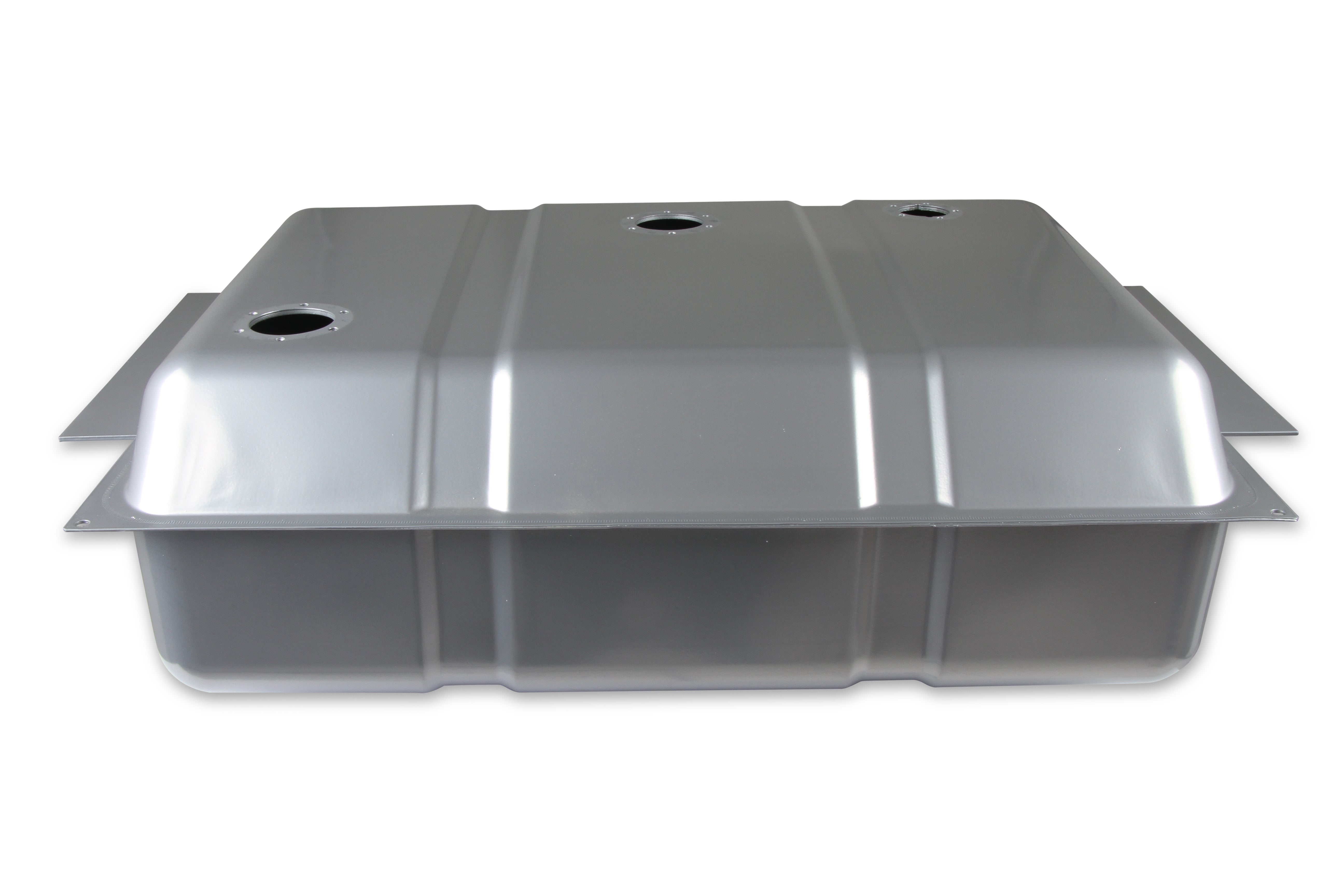

Holley Sniper EFI 19-184 Sniper EFI Fuel Tank System 255 LPH Holley Sniper EFI 19-184

The 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. 18 gallon capacity. Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw). Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange). Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange).

Specifications:

Application	1963-1966 GM C10 Trucks Gen-V LT Swap, 1963-1966 GM C10 Trucks LS Swap
8920	Yes
8919	Yes
Brand	Holley Sniper EFI
Category	Air and Fuel Delivery
Choose Your Part	Fuel Tank
Color	Silver
Drain Plug	No
Emission Code	3
4297	No
Finish	Powdercoated
Free Flow LPH	255
Fuel Sending Unit Ohms	0-30 Ohms
8918	Electronic Fuel Injection
Fuel System Type	Gasoline
8917	Powder Coated
Gallon Capacity	18
3390	Performance
4284	No
Material	Steel
Maximum Flow Rating	255 LPH
4295	No
New Straps Included	Yes
8137	Yes
part type	Fuel Tank and Pump Assembly Combination
Product Type	Fuel Tank
Resistance Ohms Empty	0 82
Resistance Ohms Full	30 82
4296	Yes
Sub Category	Fuel Pumps and Related Components
Tank Capacity	18 GA
1918	Gray
305	Steel
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNIP FTAPAC
Description_SHO	Sniper EFI Fuel Tank
Description_INV	196366 CHEVYGMC TRUCK UNDER BED TANK
Description_ASC	When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
Description_DES	Sniper EFI Fuel Tank System 255 LPH
Description_EXT	1963-1966 Chevy/GMC Truck Under Bed Mount 255 LPH EFI TANK
Description_MKT	The 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. 18 gallon capacity. Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw). Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange). Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange).
Description_FAB	Tanks are coated galvanized steel then powder coated silver for total corrosion protection 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting Fuel level sender included with the correct Ohm range for your factory gauges
