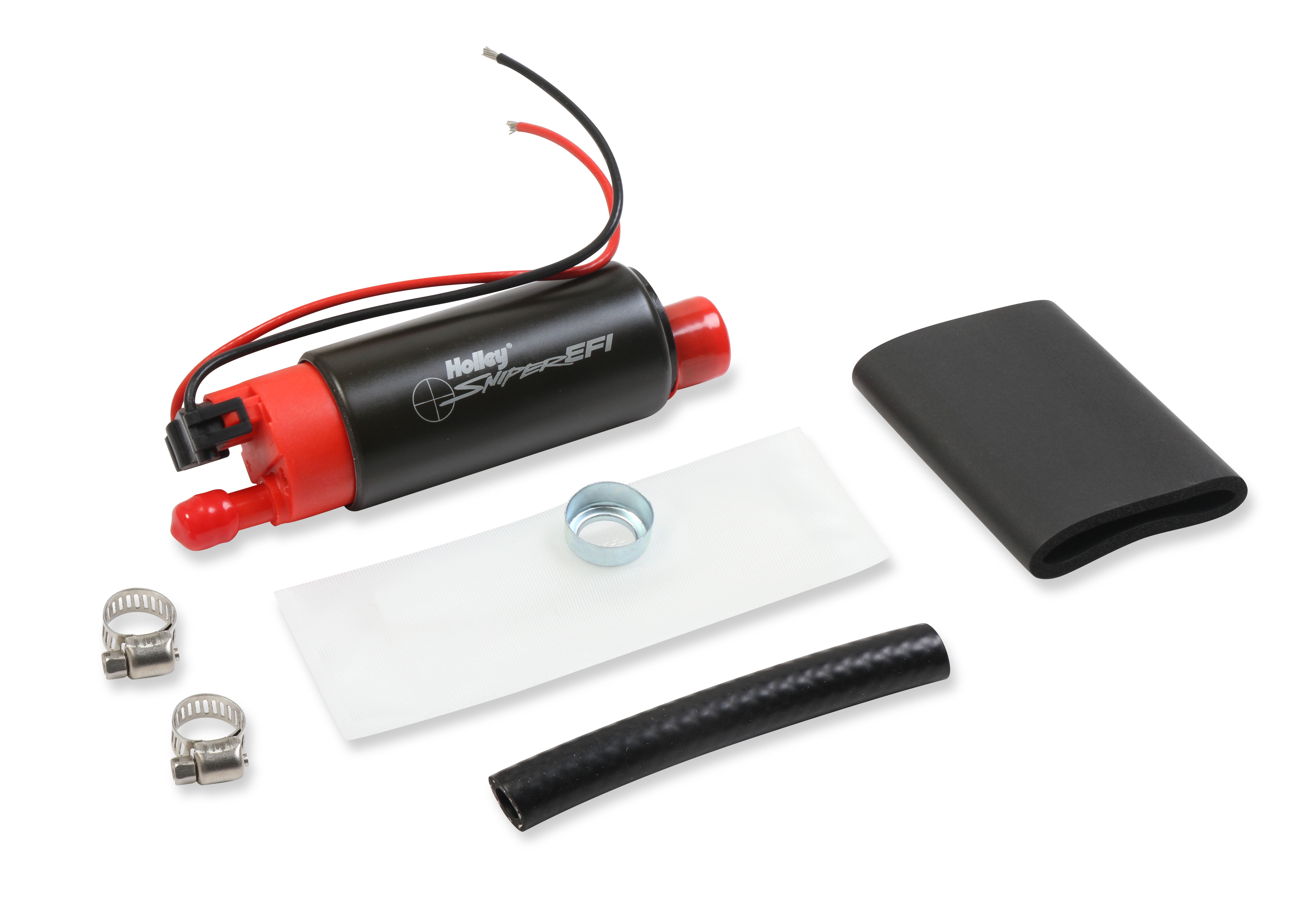

Holley Sniper EFI 19-369 Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH Holley Sniper EFI 19-369

The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet) Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc... Applications: General Motors Grand National / Regal 1982-1987 Camaro 5.0L & 5.7L 1985-1992 Corvette 5.0L & 5.7L 1982-1996 GM Cars & Trucks 1985-1992 305 (5.0L) & 350 (5.7L) 87-97 S10, S15, Sonoma, Blazer, Envoy 82-95 Firebird 5.0L & 5.7L 1985-1992 Fiero 2.8L 1985-1986 Cyclone 1991-1992 Typhoon 1992-1993 Saturn SC,SL,SW 1997-2002

Specifications:

1153	No
3390	Performance
353	No
30	Yes
518	Yes
488	Yes
Application	Universal
Average Flow Rating	340 LPH
Brand	Holley Sniper EFI
Category	Air and Fuel Delivery
Color	Black
Emission Code	5
Finish	Coated
Free Flow GPH	90
Free Flow LPH	340
Fuel Delivery Type	Carburetor, Fuel Injection
Fuel System	Carbureted, EFI
Fuel Type	E85, Gasoline
1171	19
2183	Internal
Material	Steel
92	No
1154	Yes
Outlet Quantity	One
part type	Electric Fuel Pump
Product Type	Fuel Pump
Pump Body Color	Black
235	No
4271	No
Sub Category	Fuel Pumps and Related Components
42	2
3145	Universal
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNIP EFP
Description_SHO	Sniper EFI Pump
Description_INV	ELEC PUMP 340 LPH E85
Description_ASC	This fuel pump supplies more pressure than a factory GM TBI injection is capable of supporting. However, it will fit in the factory pump hanger for the applications listed. It can be used with factory TPI injection, aftermarket EFI conversions, and engine swap conversions such as the GM LS engine. Pump OD: 1.535" Pump Length: (including outlet barb): 5.180" Inlet Port OD: 19mm (offset)
Description_DES	Sniper EFI E85 In-Tank Electric Fuel Pump - 340 LPH
Description_EXT	Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Description_MKT	The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet) Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc... Applications: General Motors Grand National / Regal 1982-1987 Camaro 5.0L & 5.7L 1985-1992 Corvette 5.0L & 5.7L 1982-1996 GM Cars & Trucks 1985-1992 305 (5.0L) & 350 (5.7L) 87-97 S10, S15, Sonoma, Blazer, Envoy 82-95 Firebird 5.0L & 5.7L 1985-1992 Fiero 2.8L 1985-1986 Cyclone 1991-1992 Typhoon 1992-1993 Saturn SC,SL,SW 1997-2002
Description_FAB	340 LPH E85 Compatible Designed for in-tank use only Compact enough to fit in existing hanger assemblies without modification Complete kit with all drop parts, accessories and installation instructions 19mm inlet port OD, offset on pump body Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability Can be used with carbureted or EFI applications Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous

This Part Fits:

Year	Make	Model	Submodel	Notes
1989	Chevrolet	C1500	Cheyenne
1989	Chevrolet	C1500	Cheyenne
1989	Chevrolet	C1500	Scottsdale
1989	Chevrolet	C1500	Scottsdale
1989	Chevrolet	C1500	Silverado
1989	Chevrolet	C1500	Silverado
1989	Chevrolet	C2500	Base
1989	Chevrolet	C2500	Cheyenne
1989	Chevrolet	C2500	Scottsdale
1989	Chevrolet	C2500	Silverado
1989	Chevrolet	C3500	Cheyenne
1989	Chevrolet	C3500	Cheyenne
1989	Chevrolet	C3500	Scottsdale
1989	Chevrolet	C3500	Scottsdale
1989	Chevrolet	C3500	Silverado
1989	Chevrolet	C3500	Silverado
1988	Chevrolet	Camaro	Base
1985	Chevrolet	Camaro	Berlinetta
1986	Chevrolet	Camaro	Berlinetta
1985	Chevrolet	Camaro	Iroc-Z
1986	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	Iroc-Z
1988	Chevrolet	Camaro	Iroc-Z
1989	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989	Chevrolet	Camaro	RS
1985	Chevrolet	Camaro	Sport
1986	Chevrolet	Camaro	Sport
1987	Chevrolet	Camaro	Sport
1985	Chevrolet	Camaro	Z28
1986	Chevrolet	Camaro	Z28
1987	Chevrolet	Camaro	Z28
1986	Chevrolet	Corvette	Base
1986	Chevrolet	Corvette	Indianapolis 500 Pace Car
1989	Chevrolet	K1500	Cheyenne
1989	Chevrolet	K1500	Cheyenne
1989	Chevrolet	K1500	Scottsdale
1989	Chevrolet	K1500	Scottsdale
1989	Chevrolet	K1500	Silverado
1989	Chevrolet	K1500	Silverado
1989	Chevrolet	K2500	Cheyenne
1989	Chevrolet	K2500	Cheyenne
1989	Chevrolet	K2500	Scottsdale
1989	Chevrolet	K2500	Scottsdale
1989	Chevrolet	K2500	Silverado
1989	Chevrolet	K2500	Silverado
1985	Pontiac	Firebird	Base
1986	Pontiac	Firebird	Base
1987	Pontiac	Firebird	Base
1987	Pontiac	Firebird	Base
1988	Pontiac	Firebird	Base
1988	Pontiac	Firebird	Base
1985	Pontiac	Firebird	S/E
1986	Pontiac	Firebird	S/E
1985	Pontiac	Firebird	Trans Am
1986	Pontiac	Firebird	Trans Am
1987	Pontiac	Firebird	Trans Am
1987	Pontiac	Firebird	Trans Am
1988	Pontiac	Firebird	Trans Am
1988	Pontiac	Firebird	Trans Am
