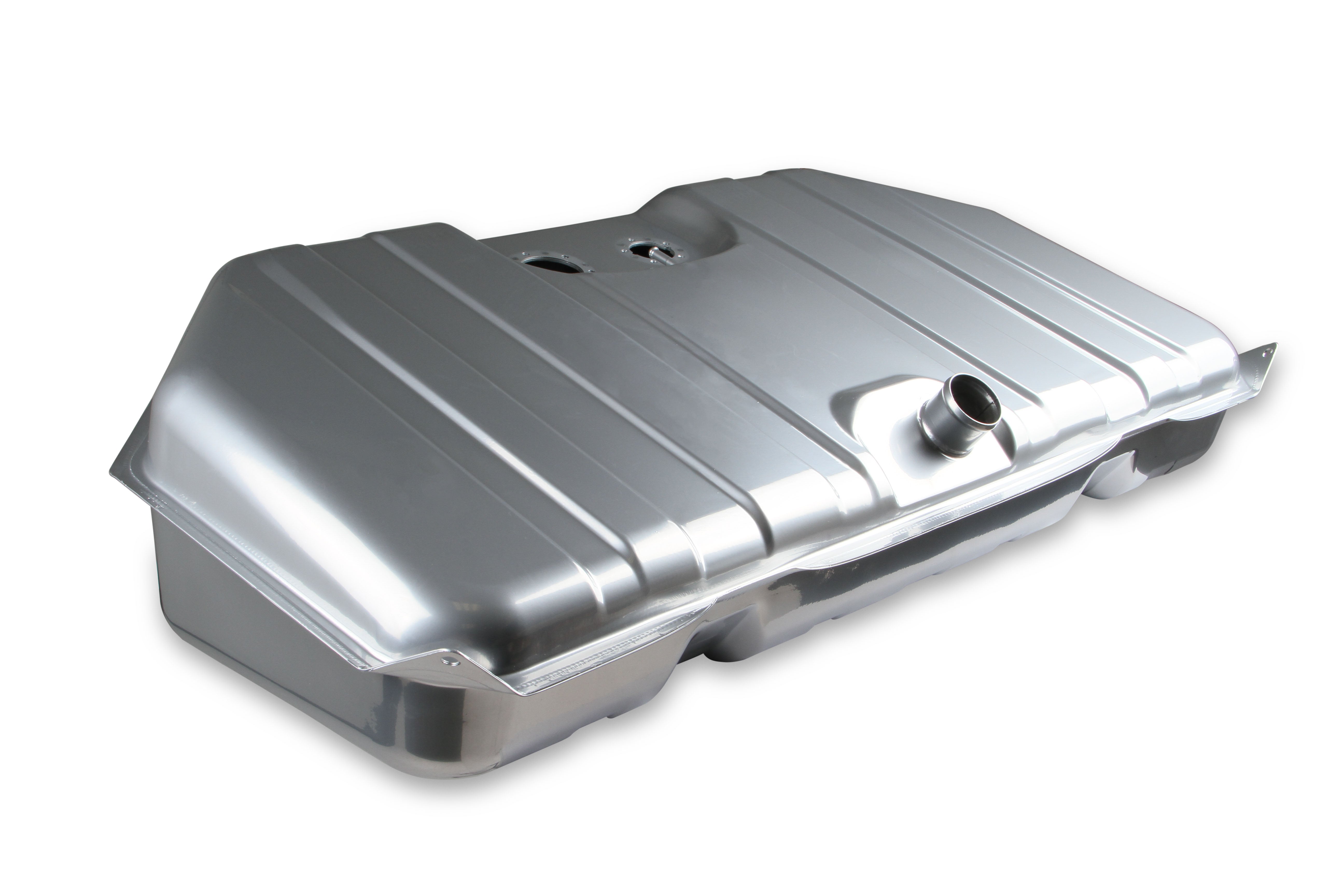

Holley Sniper EFI 19-401 Sniper EFI Fuel Tank System 400 LPH Holley Sniper EFI 19-401

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 400 LPH fuel pump supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).

Specifications:

Application	1967-1968 Chevrolet Camaro/Pontiac Firebird
8920	Yes
8919	Yes
Brand	Holley Sniper EFI
Category	Air and Fuel Delivery
Color	Silver
Drain Plug	No
Emission Code	3
4297	No
Finish	Powdercoated
Free Flow LPH	400
Fuel Sending Unit Ohms	0-90 Ohms
8918	Electronic Fuel Injection
Fuel System Type	Gasoline
8917	Powder Coated
Gallon Capacity	18
3390	Performance
4284	Yes
Material	Steel
Maximum Flow Rating	400 LPH
4295	Yes
New Straps Included	Yes
8137	Yes
part type	Fuel Tank and Pump Assembly Combination
Product Type	Fuel Tank
Resistance Ohms Empty	0 82
Resistance Ohms Full	90 82
4296	Yes
Sub Category	Fuel Pumps and Related Components
2284	18
1918	Gray
305	Steel
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNIP FTAPAC
Description_SHO	Sniper EFI Fuel Tank
Description_INV	196768 CHEVY CAMAROFIREBIRD NARROW COR
Description_ASC	When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.The filler neck is not included with the 1967-1968 Camaro/Firebird fuel tanks. You will need to use your original filler neck or purchase the 19-552 replacement filler neck.
Description_DES	Sniper EFI Fuel Tank System 400 LPH
Description_EXT	1967-1968 Chevy Camaro / Firebird with notched front corners
Description_MKT	Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 400 LPH fuel pump supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
Description_FAB	Tanks are galvanized steel then powder coated silver for total corrosion protection 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting Fuel level sender included with the correct Ohm range for your factory gauges Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation Fits and looks like an OE tank when installed Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance

This Part Fits:

Year	Make	Model	Submodel	Notes
1967	Chevrolet	Camaro
1968	Chevrolet	Camaro
1967	Pontiac	Firebird
1968	Pontiac	Firebird
