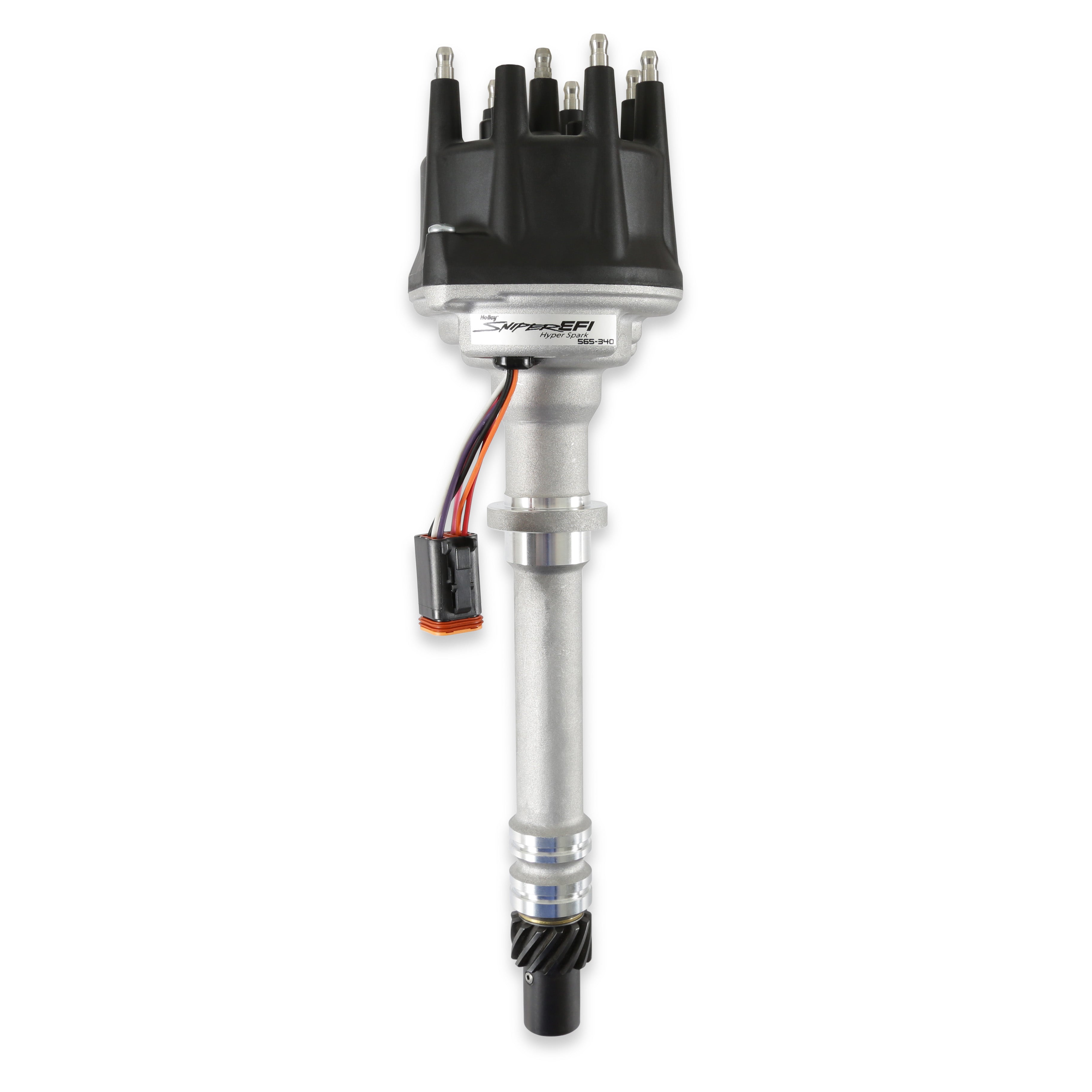

Holley Sniper EFI 565-340 HyperSpark Small Cap - Chevrolet V8 SB, BB Holley Sniper EFI 565-340

HyperSpark Ready to Run adds plug and play ignition timing control to any Holley EFI system. This line of distributors comes with a built-in ignition coil driver, removing the need of mounting an ignition box or external coil driver. The design includes a single Hall Effect sensor providing engine rpm to the ECU. The precision shutter wheel design ensures accurate timing, even at very high engine speeds. They can also be used with other EFI systems that support a Hall Effect crank signal input.

Specifications:

10589	No
5627	Locked-Out
Brand	Holley Sniper EFI
3756	Black
10591	Male
10593	No
10592	No
Color	Silver and Black
9047	Yes
10595	Yes
Emission Code	3
Gear Material	Cast Iron Melonized QPQ Coated
3390	Performance
532	Polished
5626	Yes
6783	No
10588	No
9048	Yes
10590	No
Product Type	Distributor
5628	Hall Effect
Warning	California Proposition 65
part type	Distributor
Category	Ignition
2252	No
991	Yes
347	Sealed
1286	Polished
357	Billet Aluminum
Sub Category	Distributor and Magneto
Description_ABR	SNIP DIS
Description_SHO	HyperSpark Small Cap
Description_INV	Hyperspark Small Cap Chevy V8 SBBB
Description_ASC	This product requires Holley P/N 558-329 when used with Sniper 2.
Description_DES	HyperSpark Small Cap - Chevrolet V8 SB, BB
Description_EXT	Ready-to-Run HyperSpark Distributor, Chevrolet, Cast Gear
Description_MKT	HyperSpark Ready to Run adds plug and play ignition timing control to any Holley EFI system. This line of distributors comes with a built-in ignition coil driver, removing the need of mounting an ignition box or external coil driver. The design includes a single Hall Effect sensor providing engine rpm to the ECU. The precision shutter wheel design ensures accurate timing, even at very high engine speeds. They can also be used with other EFI systems that support a Hall Effect crank signal input.
Description_FAB	Easiest plug-and-play way to add timing control to any Sniper EFI installation Designed to work with HyperSpark ignition coil PN 556-152, also compatible with most canister ignition coils using the supplied ring terminals Built-in ignition coil driver, safely provides enough spark energy for applications up to 450 hp Patented clear installation cap eliminates any confusion while installing the distributor 565-341S – comes with steel gear for SBF applications with an aftermarket camshaft Shutter wheel design allows for a “timed sequential" fueling strategy with Terminator X, HP, and Dominator ECU’s 565-341S – comes with steel gear for SBF applications with an aftermarket camshaft Precision shutter wheel provides the ECU a clean rpm signal via a single Hall Effect sensor, ensuring accurate timing even at high engine rpm Shutter wheel design allows for a “timed sequential” fueling strategy with Terminator X, HP, and Dominator ECU’s Includes wire retainer for a clean installation
