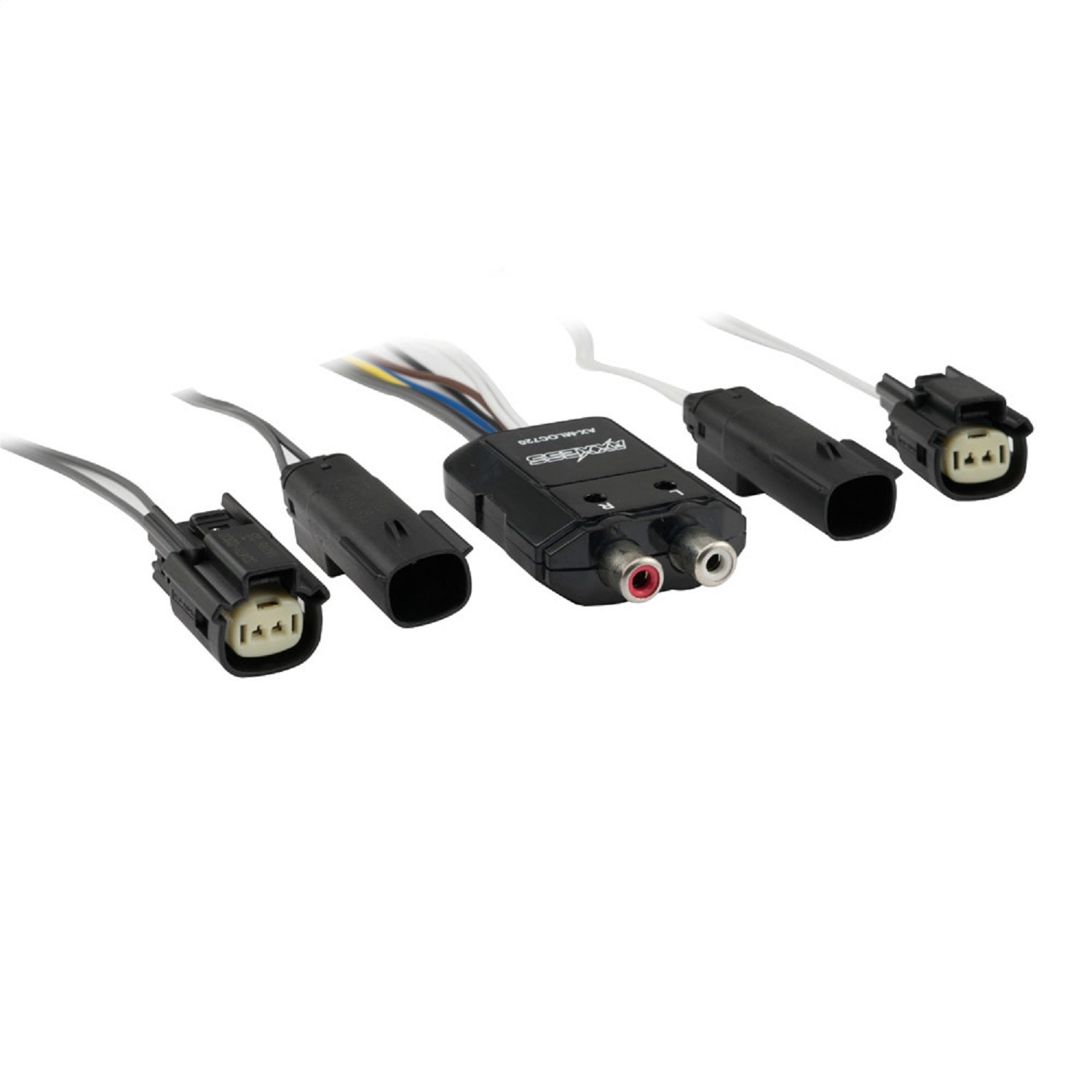

Metra Electronics AX-MLOC-HD1 Line Output Converter; Metra Electronics AX-MLOC-HD1

A two channel adjustable L.O.C. (Line Output Converter) with a built in amplifierremote generator, the AX-MLOC-HD1 is designed to convert (2) channels of speakerlevel audio into (2) channels of line level audio that can be used by an aftermarketamplifier. This device will also detect the presence of an audio signal and thengenerate a +12V output that can be used to turn-on an aftermarket amplifier.Features and specifications: The AX-MLOC-HD1 is able to handle 80watts per channel continuous input without overheating. The input circuitry isdesigned to correct the crossover distortion commonly found on standard L.O.C.s,while providing a high to low level step down of 6:1. Output audio level is infinitelyadjustable using the onboard, high quality potentiometers. The remote output, oramplifier trigger, is rated at 500mA (+12V), and will easily handle an outboardrelay if additional current is needed. The remote output will trigger instantaneouslywhen the LOC detects DC voltage on the white, left + audio input wire above 5V, ora very low audio signal. It will shut off 60 seconds after no signal is detected.

Specifications:

WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Description_DES	Line Output Converter
Description_EXT	Line Output Converter;
Description_FAB	2 Channel Input
Description_FAB	Additional Speaker Pod Harnesses Included
Description_FAB	Adjustable Gain For Each Channel
Description_FAB	80 Watt Max Per Channel
Description_FAB	12 Volt Signal Sense Turn On
Description_MKT	A two channel adjustable L.O.C. (Line Output Converter) with a built in amplifierremote generator, the AX-MLOC-HD1 is designed to convert (2) channels of speakerlevel audio into (2) channels of line level audio that can be used by an aftermarketamplifier. This device will also detect the presence of an audio signal and thengenerate a +12V output that can be used to turn-on an aftermarket amplifier.Features and specifications: The AX-MLOC-HD1 is able to handle 80watts per channel continuous input without overheating. The input circuitry isdesigned to correct the crossover distortion commonly found on standard L.O.C.'s,while providing a high to low level step down of 6:1. Output audio level is infinitelyadjustable using the onboard, high quality potentiometers. The remote output, oramplifier trigger, is rated at 500mA (+12V), and will easily handle an outboardrelay if additional current is needed. The remote output will trigger instantaneouslywhen the LOC detects DC voltage on the white, left + audio input wire above 5V, ora very low audio signal. It will shut off 60 seconds after no signal is detected.
Description_MKT	A two channel adjustable L.O.C. (Line Output Converter) with a built in amplifierremote generator, the AX-MLOC-HD1 is designed to convert (2) channels of speakerlevel audio into (2) channels of line level audio that can be used by an aftermarketamplifier. This device will also detect the presence of an audio signal and thengenerate a +12V output that can be used to turn-on an aftermarket amplifier.Features and specifications: The AX-MLOC-HD1 is able to handle 80watts per channel continuous input without overheating. The input circuitry isdesigned to correct the crossover distortion commonly found on standard L.O.C.s,while providing a high to low level step down of 6:1. Output audio level is infinitelyadjustable using the onboard, high quality potentiometers. The remote output, oramplifier trigger, is rated at 500mA (+12V), and will easily handle an outboardrelay if additional current is needed. The remote output will trigger instantaneouslywhen the LOC detects DC voltage on the white, left + audio input wire above 5V, ora very low audio signal. It will shut off 60 seconds after no signal is detected.
Description_SHO	Line Level Converter
