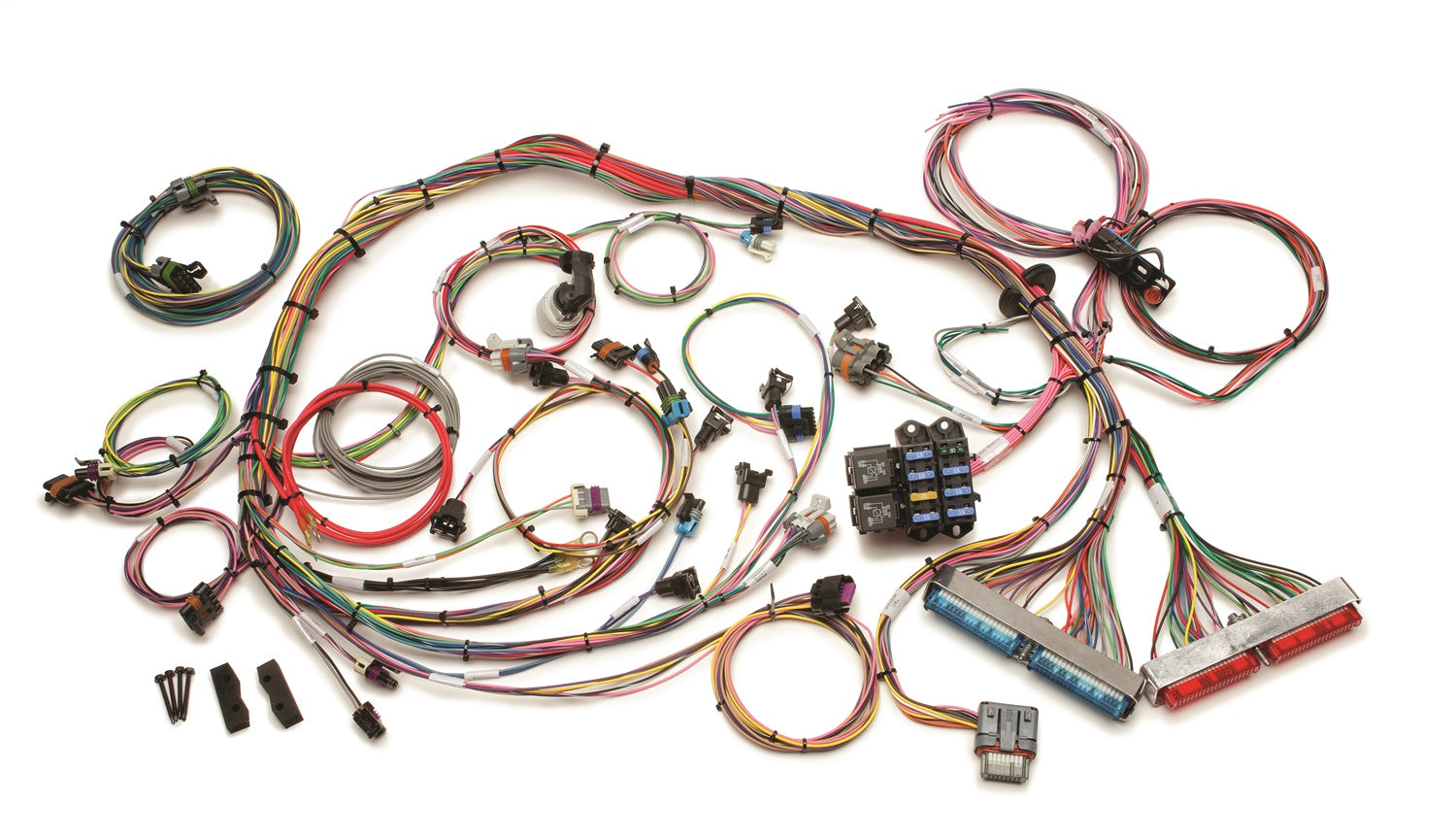

Painless Wiring 60522 Fuel Injection Wiring Harness Painless Wiring 60522

This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. The Fuse Block Protects The Following Circuits: DLC B+, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM and Malfunction Indicator Lamp, ECM B+, Transmission. This harness includes connections for the following components: Alternator , Brake Switch, Cam Position Sensor, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Gear Indicator Switch, Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Intake Air Temperature Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor, ECM, Reverse Lockout Solenoid , Skip Shift Light , Skip Shift Solenoid , Starter ,Tachometer, Throttle Position Sensor, Transmission, VATS, Vehicle Speed Sensor. VSS Output for Speedometer.

Specifications:

WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Description_DES	Fuel Injection Wiring Harness
Description_EXT	Fuel Injection Wiring Harness; Throttle By Wire; Standard Length; 8 Fuses w/2 Ignition/1 Fuel Pump Relay;
Description_FAB	Drive By Wire Throttle Body Applications
Description_FAB	Factory Style Connectors For All Required Sensors
Description_FAB	Will Control 4L60E/4L80E Transmission
Description_FAB	Includes VSS Output Wire For Speedometer
Description_FAB	Includes Ground Activation Wires For 2 Cooling Fans
Description_FAB	Comprehensive Instructions And Tech Support
Description_FAB	Guaranteed For Life
Description_MKT	This harness is designed for the 1998-2002 LS1 mechanical throttle body engines using a 1999+ LS1 / LS6 ECM with a 4L60E/4L65E automatic or T56 manual transmission. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8, 5.3, & 6.2) Vortec truck engine which has been changed to a factory of aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. The Fuse Block Protects The Following Circuits: DLC B+, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM and Malfunction Indicator Lamp, ECM B+, Transmission. This harness includes connections for the following components: Alternator , Brake Switch, Cam Position Sensor, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Gear Indicator Switch, Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Intake Air Temperature Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor, ECM, Reverse Lockout Solenoid , Skip Shift Light , Skip Shift Solenoid , Starter ,Tachometer, Throttle Position Sensor, Transmission, VATS, Vehicle Speed Sensor. VSS Output for Speedometer.
