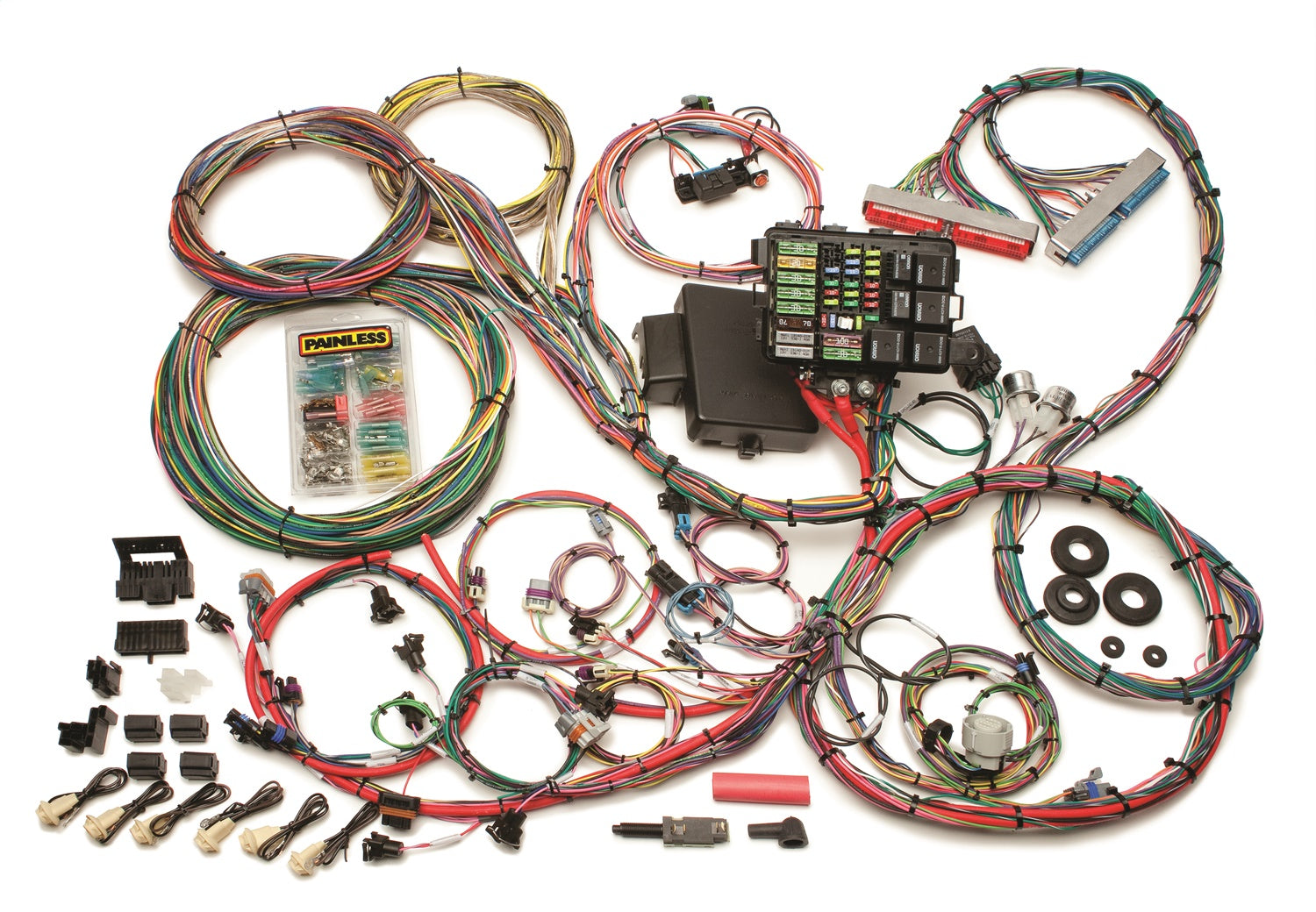

Painless Wiring 60608 Chassis Wiring Harness Painless Wiring 60608

Designed for use on any 2007+ LS3 with throttle by wire. It uses the factory ECM & TCM and will operate engines with or w/o variable valve timing (VVT) and active fuel management (displacement on demand or DOD). Does not support flex fuel & will not work on GTOs. Includes a 10 circuit weatherproof fuse block & bracket, GM color coded wires with labels, and all required terminals and connectors. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. This harness requires the following mating parts; ECM #12597121 or #12612384; TCM #24234503; Accelerator pedal #25832864 or #25835421. Fuse block protects the following circuits: ECM & Data Link Connector B+, ECM and Malfunction Indicator Lamp, Fuel Pump, Heated O2 Sensors, Ignition Coils, Injectors, Mass Airflow and Valve Lifter Oil Manifold (DOD), TCM, TCM B+, Transmission, 40 Amp Cooling fan Relay and Circuit Breaker (ECM Activated), 20 Amp Fuel Pump Relay, 40 Amp & 20 Amp Ignition Relays. Includes connections for: Accelerator Pedal Position Sensor, Alternator (Including a 4 gauge power wire), Brake Switch, Cam Position/Cam Phazer Sensor, Cooling Fan, Crank Position Sensor, Data Link Connector, Driver/Pass Front O2 Sensors, Driver/Pass Knock Sensors, ECM, Engine Coolant Temperature, Fuel Pump, Grounds, Ignition Coils, Ignition Switch Signal, Injectors, Input Speed Sensor 4L80E/4L85E, Malfunction, Indicator Lamp, MAP Sensor, Mass Airflow / Intake Air Temperature Sensor, Oil Pressure Sensor, PRNDL Switch, Reverse Lights, Starter, TCM, Throttle Body, Transmission, Valve Lifter Oil Manifold (DOD), Vehicle Speed Sensor, VSS Output for Speedometer. PLEASE NOTE: This harness is standalone and is not intended to replace the OEM engine wiring. Standalone harnesses are intended to run the designated engine & transmission only, generally when swapped into another vehicle.

Specifications:

Type	26 Circuit
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Description_DES	Chassis Wiring Harness
Description_EXT	Chassis Wiring Harness; Incl. Integrated Fuel Injection Wiring Harness; For Use w/Cable Throttle Body; 26 Circuit;
Description_FAB	Compact/Heat Resistant/Water-Proof ECU
Description_FAB	Superior Performance Over Factory ECU Settings
Description_FAB	Software Available For Precise Engine Tuning
Description_FAB	On-Board Diagnostics For Easy Troubleshooting
Description_FAB	Painless Wiring Harness Included
Description_FAB	Available For Both Electronic Trans/Throttle
Description_MKT	Designed for use on any 2007+ LS3 with throttle by wire. It uses the factory ECM & TCM and will operate engines with or w/o variable valve timing (VVT) and active fuel management (displacement on demand or DOD). Does not support flex fuel & will not work on GTOs. Includes a 10 circuit weatherproof fuse block & bracket, GM color coded wires with labels, and all required terminals and connectors. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. This harness requires the following mating parts; ECM #12597121 or #12612384; TCM #24234503; Accelerator pedal #25832864 or #25835421. Fuse block protects the following circuits: ECM & Data Link Connector B+, ECM and Malfunction Indicator Lamp, Fuel Pump, Heated O2 Sensors, Ignition Coils, Injectors, Mass Airflow and Valve Lifter Oil Manifold (DOD), TCM, TCM B+, Transmission, 40 Amp Cooling fan Relay and Circuit Breaker (ECM Activated), 20 Amp Fuel Pump Relay, 40 Amp & 20 Amp Ignition Relays. Includes connections for: Accelerator Pedal Position Sensor, Alternator (Including a 4 gauge power wire), Brake Switch, Cam Position/Cam Phazer Sensor, Cooling Fan, Crank Position Sensor, Data Link Connector, Driver/Pass Front O2 Sensors, Driver/Pass Knock Sensors, ECM, Engine Coolant Temperature, Fuel Pump, Grounds, Ignition Coils, Ignition Switch Signal, Injectors, Input Speed Sensor 4L80E/4L85E, Malfunction, Indicator Lamp, MAP Sensor, Mass Airflow / Intake Air Temperature Sensor, Oil Pressure Sensor, PRNDL Switch, Reverse Lights, Starter, TCM, Throttle Body, Transmission, Valve Lifter Oil Manifold (DOD), Vehicle Speed Sensor, VSS Output for Speedometer. PLEASE NOTE: This harness is standalone and is not intended to replace the OEM engine wiring. Standalone harnesses are intended to run the designated engine & transmission only, generally when swapped into another vehicle.
Description_SHO	Chassis Wire Harness
