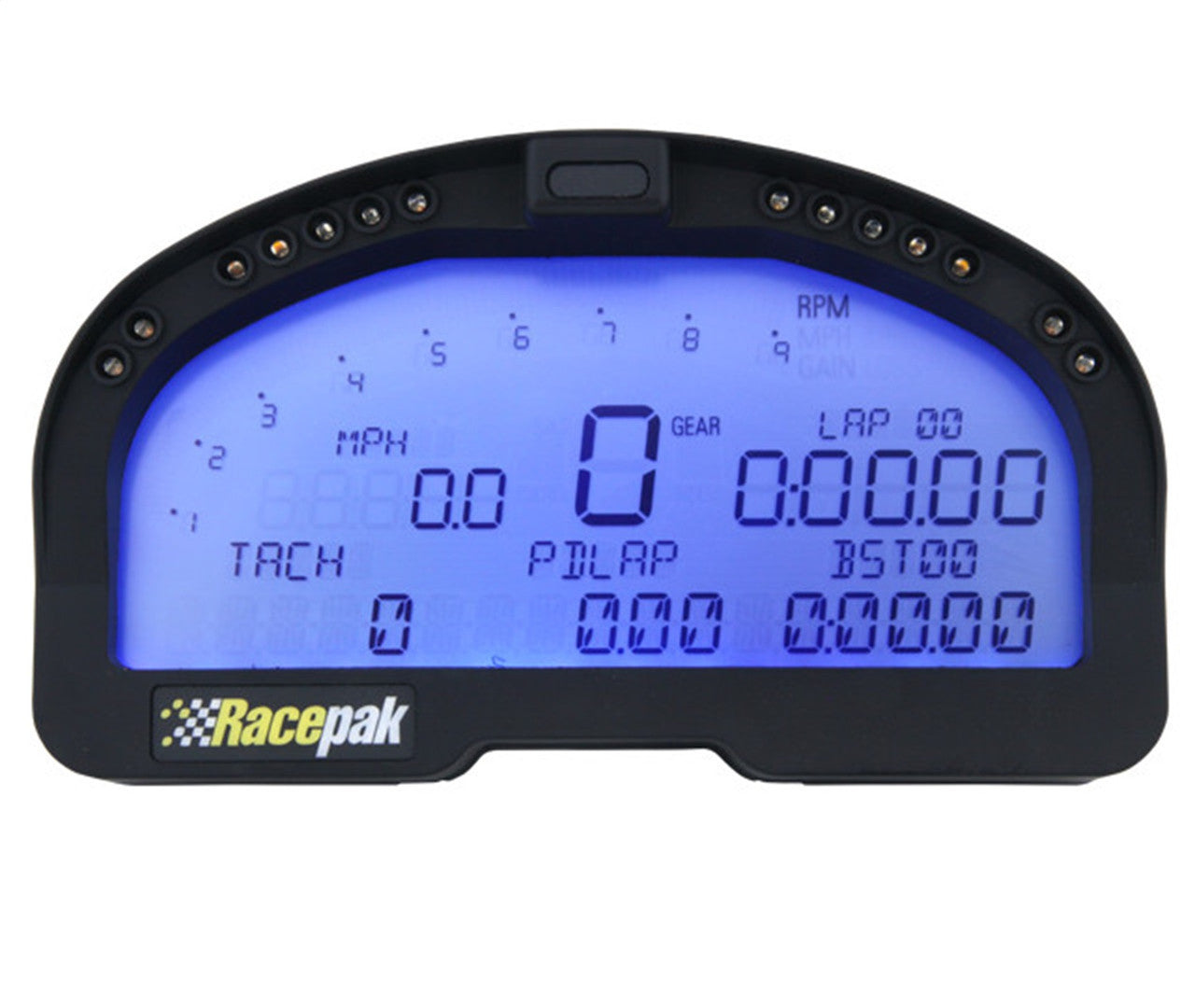

Racepak 250-KT-IQ3DBB IQ3D Drag Logger Dash Bracket Bundle Racepak 250-KT-IQ3DBB

The IQ3 Drag Bracket bundle combines our popular IQ3 Drag Logger Dash with the most common V-Net sensors and a V-Net extension cable for todays bracket racer looking for a complete monitoring package. The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. The IQ3 Drag Logger Dash mergest Racepaks V-Net single cable sensor technology and with a fully programmable display, creating a complete data center. The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Carb Fuel Press, and Trans Temp. All external sensor data is routed to the rear of the dash by a single V-Net cable and main wiring harness. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.

Specifications:

Description_DES	IQ3D Drag Logger Dash Bracket Bundle
Description_EXT	IQ3D Drag Logger Dash Bracket Bundle; Incl. IQ3D Data Logger Dash/Wiring Harness/Oil P.-Water Temp. Sensors/MicroSD Card and Reader/V-Net Modules/72 in. Cable/Cable/Software;
Description_FAB	Records Engine and Driveshaft RPM/Oil PSI/Water Temp
Description_FAB	Records Battery Voltage/12V Event
Description_FAB	Displays Up To 28 Inputs Via 4 Pages MicroSD Memory Card
Description_FAB	Blue Dimmable Backlight
Description_FAB	Four User Defined Alarms
Description_FAB	User Defined 5 Character Sensor Input Names
Description_FAB	Programmable Shift Light Output For Up To 6 Shift Points
Description_FAB	Shielded Low Luster Display For Sunlight Viewing
Description_FAB	Connects To Over 20 Aftermarket EFI Products
Description_FAB	Shock Travel Upgrade Package Available
Description_FAB	V-Net 0-15 lbs. Carburetor Pressure Models
Description_FAB	V-Net Transmission Pressure Module
Description_MKT	The IQ3 Drag Bracket bundle combines our popular IQ3 Drag Logger Dash with the most common V-Net sensors and a V-Net extension cable for todays bracket racer looking for a complete monitoring package. The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. The IQ3 Drag Logger Dash mergest Racepaks V-Net single cable sensor technology and with a fully programmable display, creating a complete data center. The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Carb Fuel Press, and Trans Temp. All external sensor data is routed to the rear of the dash by a single V-Net cable and main wiring harness. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.
Description_SHO	Data Logging Unit
