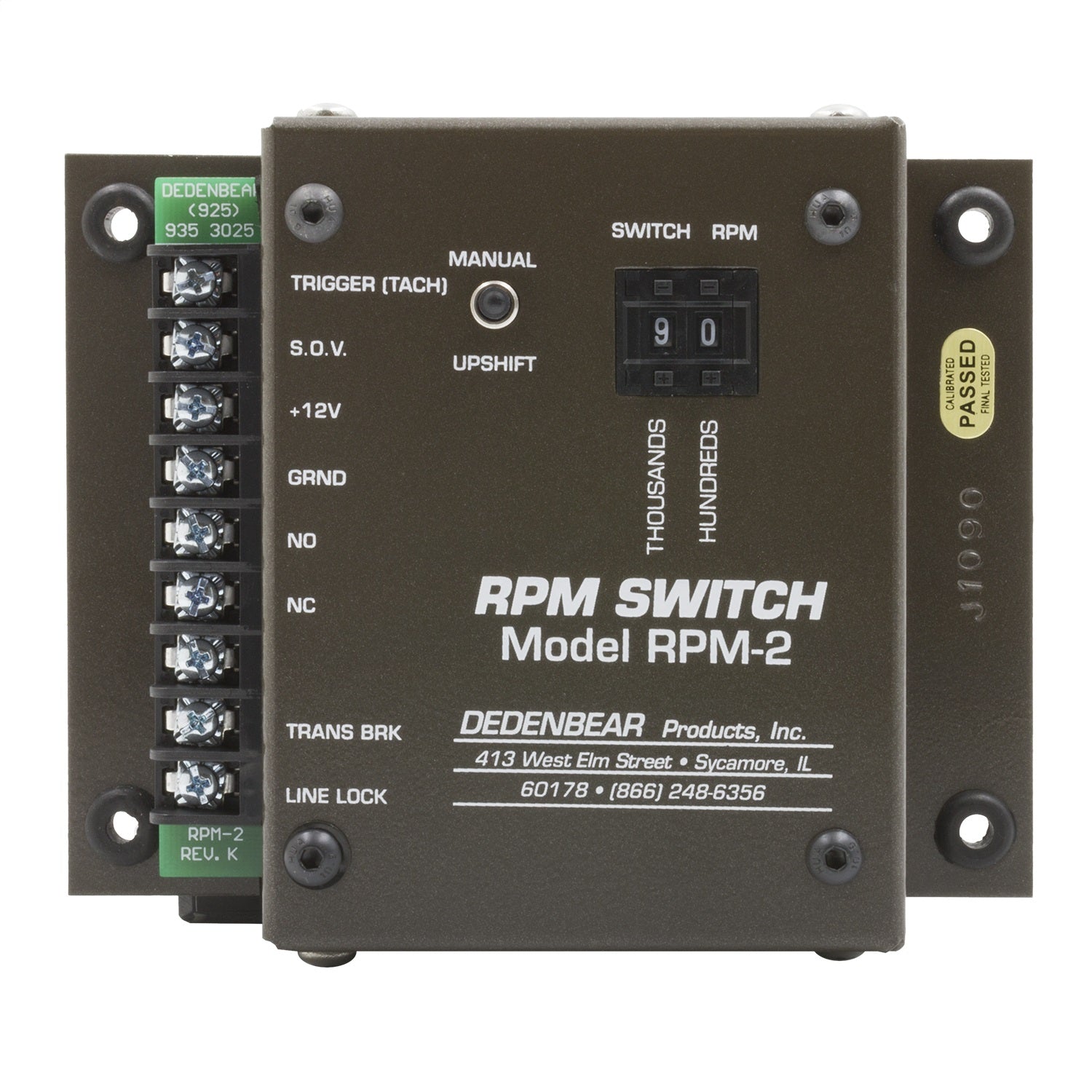

Dedenbear RPM2 RPM ACTIVATED SWITCH Dedenbear RPM2

The Dedenbear RPM2 RPM Activated switch allows you to trigger a wide variety of electrical devices on your race vehicle based on a pre-selected, user-defined RPM point with incredible repeatability. Push button controls eliminate the need for separate pills or modules and built in design features such as manual override, time delay, and disable circuit make this module ideally suited for control of an air or electric solenoid control shifter. Suitable for use with 8 cylinder applications. Magneto compatible with purchase signal converter such as AutoMeter #9118.

Specifications:

Gauge Size	134mm x 108mm x 32mm
Gauge Size	5.250 in. x 4.250 in. x 1.250 in.
Mounting Hardware Included	Yes
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
Description_DES	RPM ACTIVATED SWITCH
Description_EXT	RPM ACTIVATED SWITCH
Description_FAB	Rated Up To 10A
Description_FAB	Built In .5 Second Delay
Description_FAB	Normally Open And Normally Closed Output Terminals
Description_FAB	Configured For 8 Cylinder 4 Pulse/Revolution Tach Output Signals
Description_FAB	12 And 16V Compatible
Description_FAB	Manual Upshift Trigger Button; Allows Driver Override And Testing
Description_FAB	Built In Time Delay Prevents False Shifts Off Line
Description_FAB	Disable Circuit Prevents Shifting During Burnouts
Description_INV	RPM SWITCH; VERSION 2
Description_MKT	The Dedenbear RPM2 RPM Activated switch allows you to trigger a wide variety of electrical devices on your race vehicle based on a pre-selected, user-defined RPM point with incredible repeatability. Push button controls eliminate the need for separate pills or modules and built in design features such as manual override, time delay, and disable circuit make this module ideally suited for control of an air or electric solenoid control shifter. Suitable for use with 8 cylinder applications. Magneto compatible with purchase signal converter such as AutoMeter #9118.
Description_SHO	DEDENBEAR
