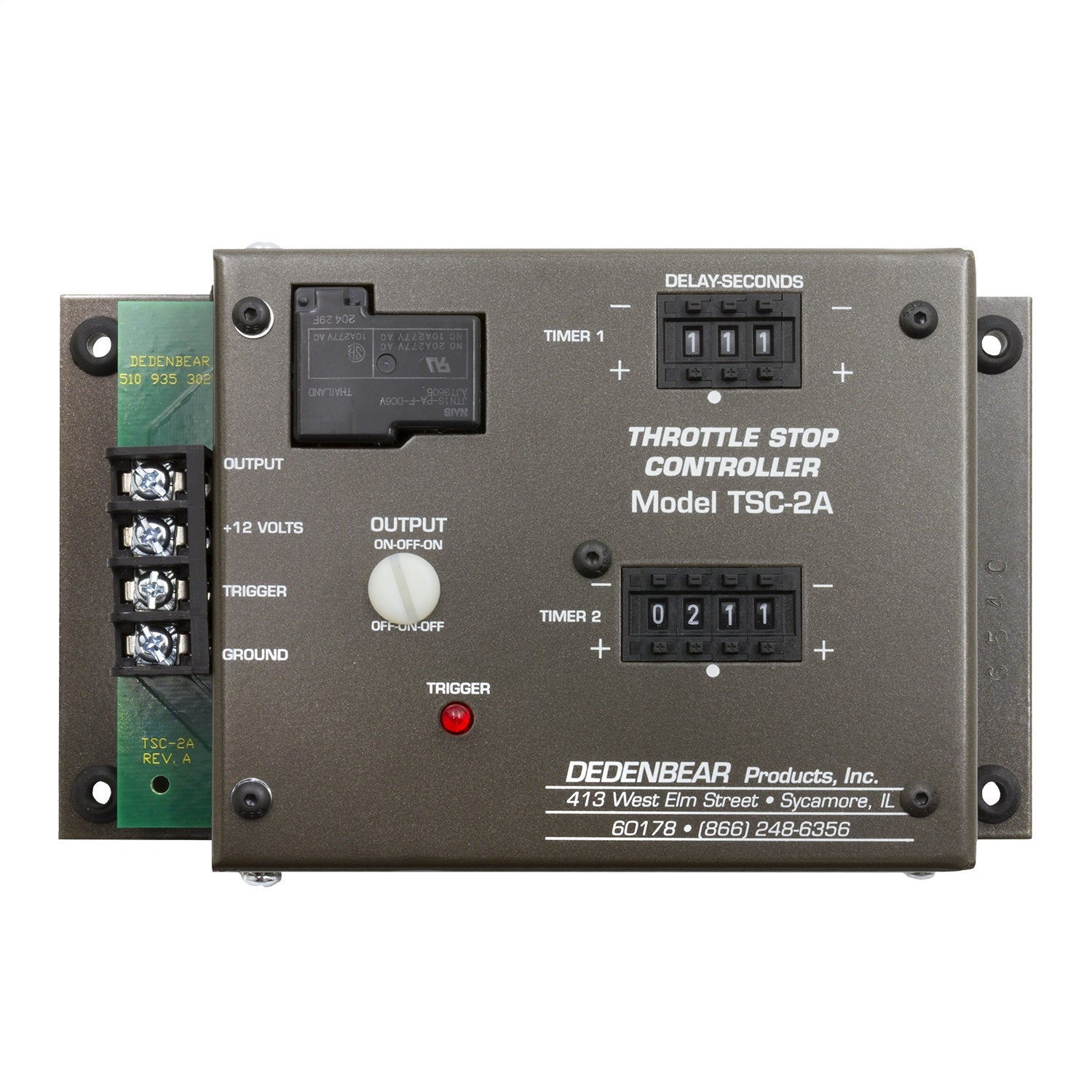

Dedenbear TSC2A THROTTLE STOP/NITROUS CONTROLLER; 2-STAGE TIMER (SINGLE OUTPUT) Dedenbear TSC2A

The Dedenbear TSC2A Two-Stage Controller is designed as part of an engineered package with their throttle stops for optimal timed activation performance, but is so versatile that it can be used to provide control over a variety of other devices including automated shifters, timed ignition retard, nitrous systems, lean out solenoids and more! When being used with a throttle stop, the dual stage control lets you launch at wide open throttle (for lowest reaction time), reduce power at mid track (for any duration desired) then resume wide open throttle (for the top end charge). Timer 1 can be set anywhere from 0.00 to 9.99 seconds in 0.01 second incrememnts. Timer 2 is user configurable from 0.00 to 99.99 seconds. The Two-Stage Controllers switchable 30 Amp output handles any throttle stop with ease and allow for either normally open (NO) or normally closed (NC) output. Built in LED indicator lamp provides confirmation of when you and trigger the box and the unit resets automatically whenever you apply the transbrake. Dedenbear quartz crystal timing ensures exceptional accuracy, repeatability, and reliability with virtually any performance ignition system.

Specifications:

Description_DES	THROTTLE STOP/NITROUS CONTROLLER; 2-STAGE TIMER (SINGLE OUTPUT)
Description_EXT	THROTTLE STOP/NITROUS CONTROLLER; 2-STAGE TIMER (SINGLE OUTPUT)
Description_FAB	Rated Up To 30 Amps
Description_FAB	Push Button Thumbwheels Allow You To Program Your Desired
Description_FAB	Timing Points In 0.01 Second Increments Up To 9.99 Seconds
Description_FAB	For Timer 1 And 99.99 Seconds For Timer 2
Description_FAB	Single Output Terminal To Control A Baseplate Stop
Description_FAB	Linkage Stop/Automated Shifter Or Single Stage Of Nitrous
Description_FAB	On-Off-On Or Off-On-Off Output Activation Sequence
Description_FAB	Simple Four Wire Installation
Description_FAB	Precision Quartz Crystal Timing
Description_FAB	12 And 16 Volt System Compatible
Description_INV	THROTTLE STOP CONTROLLER VR 2A
Description_MKT	The Dedenbear TSC2A Two-Stage Controller is designed as part of an engineered package with their throttle stops for optimal timed activation performance, but is so versatile that it can be used to provide control over a variety of other devices including automated shifters, timed ignition retard, nitrous systems, lean out solenoids and more! When being used with a throttle stop, the dual stage control lets you launch at wide open throttle (for lowest reaction time), reduce power at mid track (for any duration desired) then resume wide open throttle (for the top end charge). Timer 1 can be set anywhere from 0.00 to 9.99 seconds in 0.01 second incrememnts. Timer 2 is user configurable from 0.00 to 99.99 seconds. The Two-Stage Controllers switchable 30 Amp output handles any throttle stop with ease and allow for either normally open (NO) or normally closed (NC) output. Built in LED indicator lamp provides confirmation of when you and trigger the box and the unit resets automatically whenever you apply the transbrake. Dedenbear quartz crystal timing ensures exceptional accuracy, repeatability, and reliability with virtually any performance ignition system.
Description_SHO	THROT STP CTRL 2 Stg
